Dom -160 °C to +240°C For TPI

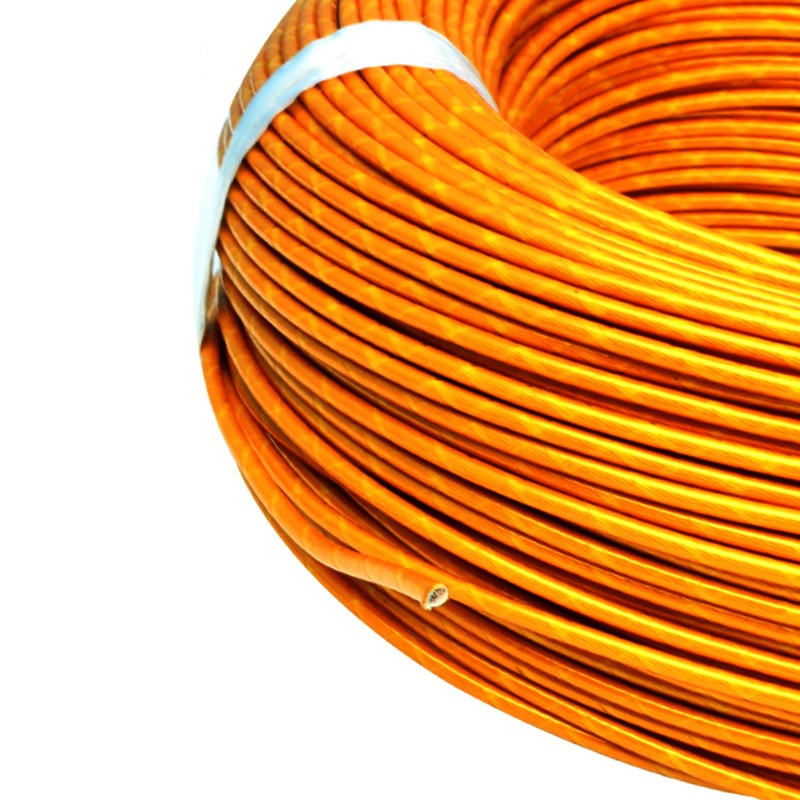

High Lubricity TPI and PTFE Composite Cable

High Lubricity TPI and PTFE Composite Cable

CIT cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion.

Polyimide (PI) is a group of high performing polymers known for their exceptional chemical, thermal, and mechanical performance properties. These materials demonstrate exceptional thermal stability in high and low temperatures and are extremely flame resistant. PI , CITCABLE PI / TEFLON composite, is a high lubricity polyimide blend for applications that require lower surface friction yet do not require the performance of pure TEFLON. Polyimide maintains broad chemical resistance and good dielectric properties in addition to its reduced coefficient of friction



High Temperature PI Cable is designed with high-performance insulation materials that provide exceptional thermal resistance. This allows the cable to operate in temperatures exceeding 240°C, making it ideal for use in extreme heat environments such as power plants, automotive engines, and aerospace systems. The durable outer layer ensures that the cable maintains its performance even under continuous exposure to high temperatures, preventing failures and enhancing the longevity of your equipment.

polyimide wire can be produced in extremely small dimensions, yet it retains strength and pushability whether for vascular catheters or medical deployments. Polyimide can also be provided as a coating for over-the-PI insulated wire applications. Polyimide coating for electrical leads provides insulation in addition to a low-friction surface for easier positioning or placement. Polyimide can also be provided in a layered composite-type construction to further tailor tubing or coating properties

Features

  • Class VI biocompatibility
  •  Temperature tolerance to 240 °C
  • Thermal stability • Good dielectric properties
  • UL 94 V-0 flammability rated •
  • Chemical resistanc
  • PI Insulated wires with Silver-plated AND Silver  conductors



Application


1- Cryogenic storage system Wire
2- Highly Flexible Multi-strand Types
3- Liquid helium Sensor cable
4- Liquid nitrogen power cable
5- Cryogenic pumps Cable
6- Cryogenic liquid Cable
7- The original UHV Cable
8- Medical Cable
9- Aerospace Cable
10- Automotive Cable
11- Electronics Cable
12- Chemical Cable
12- Sensors Cable, and more Cable





Construction Tin Plated Copper (TPC) Silver Plated Copper (SPC) Silver Plated Copper Covered Steel (SCCS) Copper Covered Steel (CCS)
Insulation FEP
Coating PI/PFA
Inner Screen Braided screen of silver plated copper wire  95%
Inner Jacket PI/PTFE
Outer Screen Braided screen of silver plated copper wire  95%
OD 8mm
Conductor to Inner Screen <90pF/m
Inner Screenr to Outer Screen <200pF/m
Noise Level (pk - pk ) ≤1 mV
Vp 56%
Colour code Natural
Sheath Natural
